- Discontinued?
- The AJA HD10AVA handles CVBS, Y/C, and YPbPr. I think it supports RGB, but the docs are conflicting on that point. Here's a feature chart for the various converters.
- error in that chart, HD10AVA does not convert SDI to YPbPr, only the the other way round
- Upscales Composite video to HDMI 720P/1080P (60HZ)
- These are generic converters that may have different chips in them depending on when you purchase them.
- HDMI and SDI convertors
- YUV Component to VGA upscaler
- Alternative firmware for the GBS 8200
- Downscales HDMI (480i through 1080P) to Composite 480i
- These are generic converters that may have different chips in them depending on when you purchase them.
- Optional USB Power
- Known to cause issues with some mixers (black and white or rainbow output)
- Insignia is a BestBuy exclusive brand.
- Lacks S-Video
- This converter is being investigated as of 2025-08-01

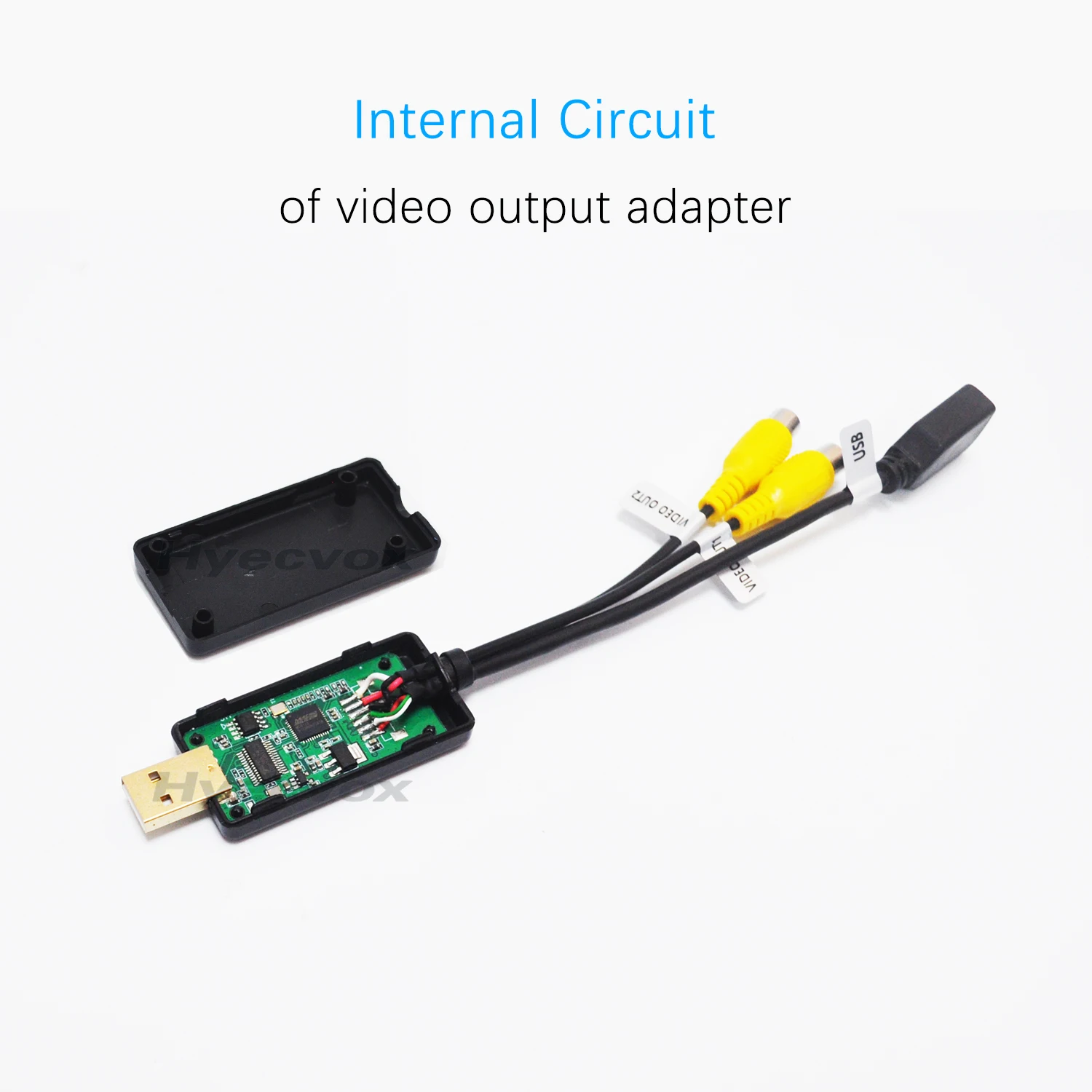

- This appears to be the chip powering several common Android Car Stereo to Composite converters. These converters often have two outputs as they are meant to drive two headrest monitors for backseat passengers. Most likely this outputs a single video feed, mirrored on the two outputs.
- There are several look-alikes for this product. Note, probably looking for the one with 3 wires: 2 composite, and one USB female.
- https://xdaforums.com/t/a-usb-to-cvbs-av-solution.4699309/
- http://en.macrosilicon.com/info.asp?base_id=2&third_id=57
- http://www.macrosilicon.com:9080/download/USBDisplay/
- https://lcsc.com/product-detail/Video-Interface-ICs_Macrosilicon-MS9120_C19267482.htmlhttp://www.macrosilicon.com:9080/download/USBDisplay/
- https://www.youtube.com/watch?v=7maVfAY2bzE
- https://github.com/MindShow/USBDisplay
- https://github.com/rhgndf/ms912x
- Amazon.com: Kuuleyn Video Out Adapter, RCA Composite Cvbs Video Audio Converter Adapter, USB to Cvbs Video Output Adapter HD Video Easy to Use USB to RCA Interface Cable Adapter for Vehicle
- This version has been tested to work on Win 11. It output 800x600x60Hz, and the two outputs show the same thing. The MindShow driver from Github was used.
- This one looks to one of the more reputable sellers, but needs verification.
- Upscales Component (YPbPr) to HDMI
- Not super useful as it is Component and not Composite. Mostly for gamers.
- BitFunx OSSC
- https://github.com/marqs85/ossc
- https://junkerhq.net/xrgb/index.php/OSSC
- HDMI to CVBS 4k Scaler
- Interesting because it has buttons for Zoom and Aspect Ratio
- Aka Link-MI LM-HA01-4K
- https://www.newegg.com/p/2S7-04RG-00221
- https://www.ebay.com/itm/284444880715
- https://www.thanksbuyer.com/hdmi-to-av-converter-4k-hdmi-to-cvbs-converter-scaler-for-tv-monitor-projector-hdv-960-60937
- https://www.goldsupplier.com/provide/p133562161.html
- https://www.aliexpress.us/item/3256801811113693.html
- https://www.aliexpress.us/item/2251832664225926.html
- The RetroTink line of converters are aimed at gamers; and the features they focus on are zero-latency conversion of Component/Composite to HDMI. Including video game specific 240p composite; which is a hack that works on 480i standard composite; by only sending every-other line.
- RetroTink 4k Pro
- RetroTink 4k CE
- Cut down version of 4k Pro, removes some features that may be relevant to Analog Video art. I.e. 3d Comb Filter
- RetroTink 5X Pro
- Analog inputs, HDMI out
- RetroTink 2x Pro
- RetroTink 2x Mini
- https://consolemods.org/wiki/Retrotink
- https://www.retrotink.com/shop
- https://www.retrorgb.com/retrotink.html
- RetroTink Firmware - https://github.com/RetroTINK-LLC/firmware
- RetroTink Firmware updater - https://github.com/rmull/tinkup
- Latency free upscaling from 240p Composite, Component, S-video to 480p HDMI
- It appears to be a clone of the RetroTink 2x
- Says it is an upscaler, but upscaling from HDMI to Composite doesn’t really make sense. Could just be SEO spam. Although the specs say it does 480p input; and 576p output; so you could technically upscale if you ever needed that.
- Has some extra audio outputs (SPDIF, and Coaxial, R / L Stereo Audio)
- Optional USB Power

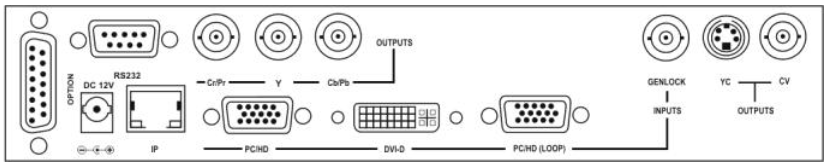

- Downcoverter from DVI and VGA to Analog formats
- https://tvone.com/products/legacy-products?format=raw&task=download&fid=648
